Types and descriptions of power cables

2023 02/16

The core of yjv cable mainly includes single core, 2 core, 3 core, 4 core, 5 core, 3+1, 3+2, 4+1. 3+1 represents 3 phase lines+1 ground wire, 3+2 represents 3 phase lines+2 ground wires, and 4+1 represents 4 phase lines+1 ground wire.

According to the standard models, the specific size models include: 1 square, 1.5 square, 2.5 square, 4 square, 6 square, 10 square, 16 square, 25 square, 35 square, 50 square, 70 square, 95 square, 120 square, 150 square, 185 square, 240 square, and 300 square. For example, yjv3 * 185+2 * 95 cable is a cable composed of three 185 square phase lines and two 95 ground wires. Since the combination between the phase line and ground wire of the cable is regulated by standards, the 95 square behind the yjv3 * 185+2 * 95 cable can be omitted.

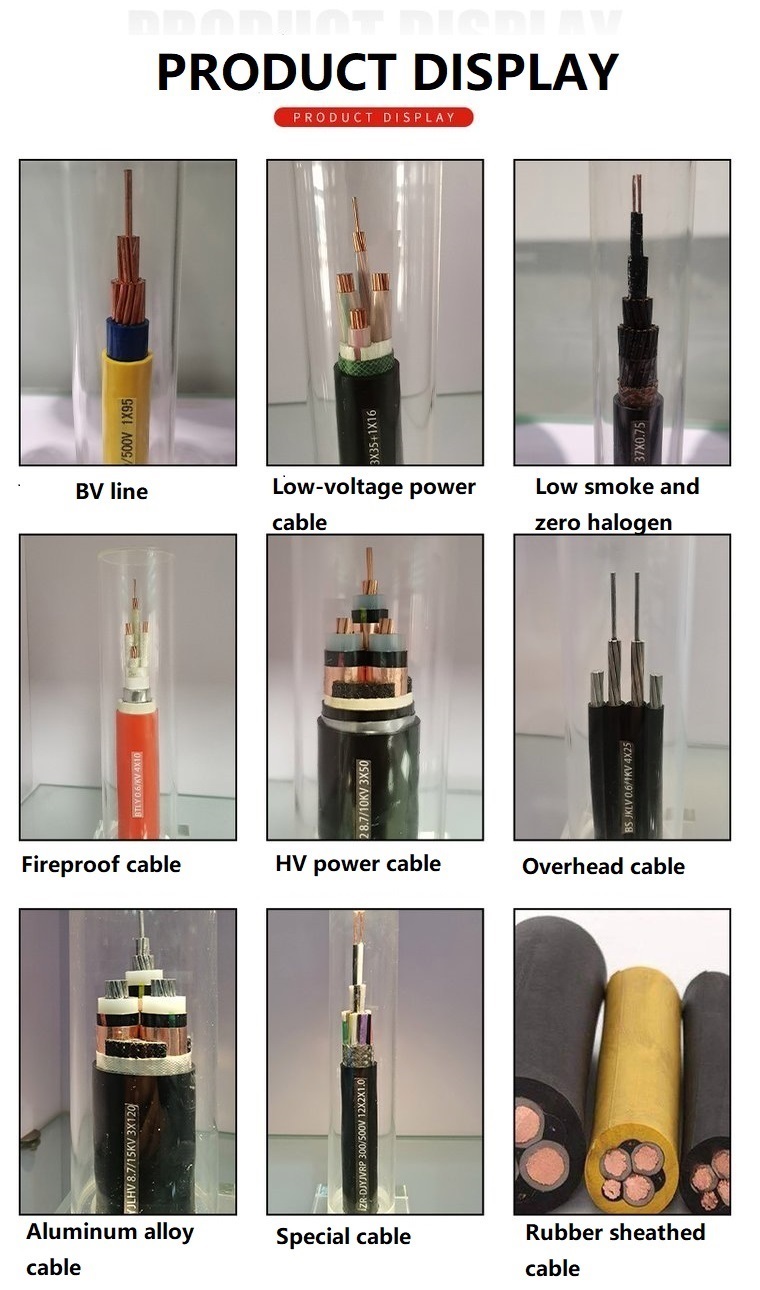

Various Types Of Wires And Cables
